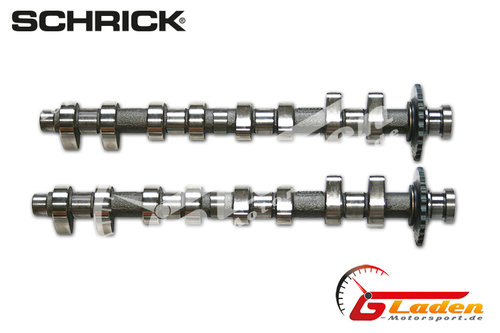

VW 16V roller cam follower SCHRICK Camshafts 268° with adjustable intake camshaft
Stock
on stock
***available*** delivery time 2 - 5 working day
Description
Additional Informations
Query on the Item?
Original SCHRICK Camshafts 268°
with adjustable intake camshaft
VW 16V small block 4 cylinder 4 valve roller cam follower (Polo, Lupo, Golf 4, Arosa, Felicia)
Schrick item number: 0350E1681-V0 / 0350A1681-00
Technical data:
- Intake Camshaft VW 16V 268° with adjustable intake camshaft
- Cam lobe lift exhaust 4,8mm
- Valve lift without valve clearance intake 9,15mm
- Valve Lift at TDC 0,8
- Lobe Angel 112°
- Valve Clearance hydraulic
- Exhaust Camshaft VW 16V 268°
- Cam lobe lift exhaust 4,8mm
- Valve lift without valve clearance 9,15mm
- Valve lift @ TDC exhaust (AM) 1 0,8mm
- Exhaust peak timing 112°
- Valve Clearance hydraulic
Schrick guaranteed only warranty, if when fitting a Schrick camshaft new hydraulic valve lifters installed with!
Scope of delivery:
- 1 x Schrick Intake camshaft VW 16V 268° (0350E1681-V0)
- 1 x Schrick Exhaust camshaft VW 16V 268° (0350A1681-00
with adjustable intake camshaft
VW 16V small block 4 cylinder 4 valve roller cam follower (Polo, Lupo, Golf 4, Arosa, Felicia)
Schrick item number: 0350E1681-V0 / 0350A1681-00
Technical data:
- Intake Camshaft VW 16V 268° with adjustable intake camshaft
- Cam lobe lift exhaust 4,8mm
- Valve lift without valve clearance intake 9,15mm
- Valve Lift at TDC 0,8
- Lobe Angel 112°
- Valve Clearance hydraulic
- Exhaust Camshaft VW 16V 268°
- Cam lobe lift exhaust 4,8mm
- Valve lift without valve clearance 9,15mm
- Valve lift @ TDC exhaust (AM) 1 0,8mm
- Exhaust peak timing 112°
- Valve Clearance hydraulic
Schrick guaranteed only warranty, if when fitting a Schrick camshaft new hydraulic valve lifters installed with!
Scope of delivery:
- 1 x Schrick Intake camshaft VW 16V 268° (0350E1681-V0)
- 1 x Schrick Exhaust camshaft VW 16V 268° (0350A1681-00
