Racimex Oil cooler Kit 16 Row with reinforced stainless steel braided hose lines
Description
Additional Informations
Query on the Item?

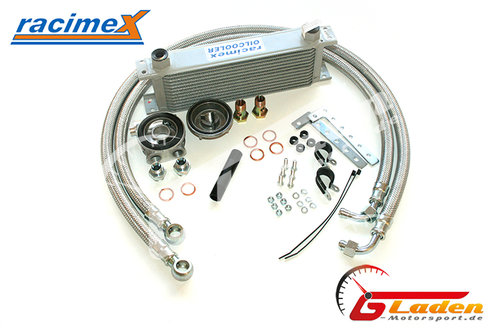

High quality Racimex 16 Row Oilcooler Kit
This Kit includes reinforced stainless steel braided hose lines, integrated thermostat (opening Themperature 80°), with complete gaskets- and mounting parts and Installation instructions.
Protect the engine against overheat!
Specifications Mounting Kit: Art.-Nr. 50081THS
- oil filter flange with thermostat (opens at 80 ° C)
- 2 x reinforced stainless steel braided hose lines(130cm / 110cm)
- Hose diameter 1/2 "or 12.7 mm inside (specification SAE R6)
- Pressed-on connections union M18x1,5x90 ° / banjo union M18x1,5)
- Ready to install with installation instructions
Specifications Oil Cooler: Art.-Nr. 50053
A - Total length in 330 mm
B - distance between the terminals in 250 mm
C - mesh width 290 mm
D - Distance of mounting holes in 310 mm
H - total height of the radiator in 140 mm
(Picture for illustration only!)
This Kit includes reinforced stainless steel braided hose lines, integrated thermostat (opening Themperature 80°), with complete gaskets- and mounting parts and Installation instructions.
Protect the engine against overheat!
Specifications Mounting Kit: Art.-Nr. 50081THS
- oil filter flange with thermostat (opens at 80 ° C)
- 2 x reinforced stainless steel braided hose lines(130cm / 110cm)
- Hose diameter 1/2 "or 12.7 mm inside (specification SAE R6)
- Pressed-on connections union M18x1,5x90 ° / banjo union M18x1,5)
- Ready to install with installation instructions
Specifications Oil Cooler: Art.-Nr. 50053
A - Total length in 330 mm
B - distance between the terminals in 250 mm
C - mesh width 290 mm
D - Distance of mounting holes in 310 mm
H - total height of the radiator in 140 mm
(Picture for illustration only!)
