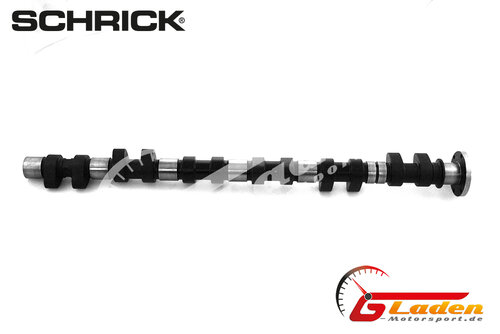

BMW S50, S52 SCHRICK Intake Camshaft 316°

Original Schrick Intake Camshaft 316°
BMW S50, S52 6 cyl. 4 valve (M 3 E36)

Schrick item number: 0284E1160-1V2

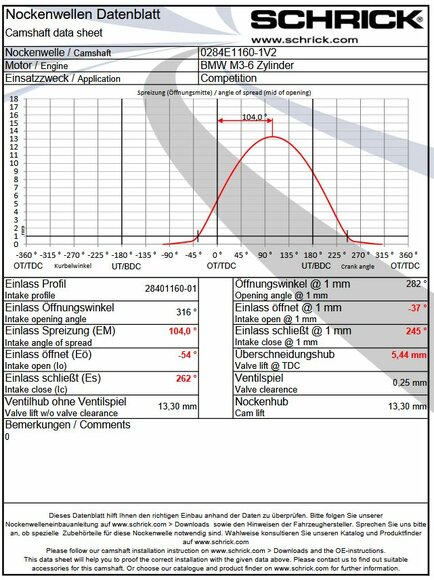

Technical data:

- Intake Camshaft BMW S50 S52 316°
- Cam Lift 13,3mm
- Valve lift intake 13,3mm
- Valve Lift at TDC 5,5mm
- Peak timing intake 104°
- Valve Clearance 0,25mm

Vanos system must be removed!
Base circle diam. 32mm

Camshafts must be used with:

- valve springs ( 022702113 )
- valve spring retainers ( 028413013, 028413012 )
- lifters ( 022713805-2 )
- valve cotters ( 0894138L6 )
- intake valve ( 028413014 )




Scope of delivery:

- 1 x Schrick Intake Nockenwelle BMW S50 S52 316°
