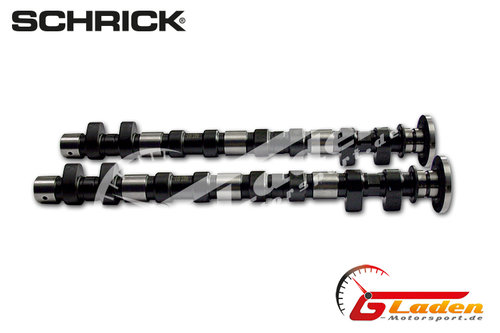

BMW S50, S52 SCHRICK Camshafts 316°/308°
additional images:
Stock
sold out
On stock: -
This Article is currently not on stock. Please enter your mail and we will notify you when the product is back on stock.
Description
Additional Informations
accessories
Query on the Item?
Original Schrick Camshafts Set 316°/308°
BMW S50, S52 6 cyl. 4 valve (M 3 E36)
Schrick item number: 0284E1160-1V2 / 0284A1080-1V2

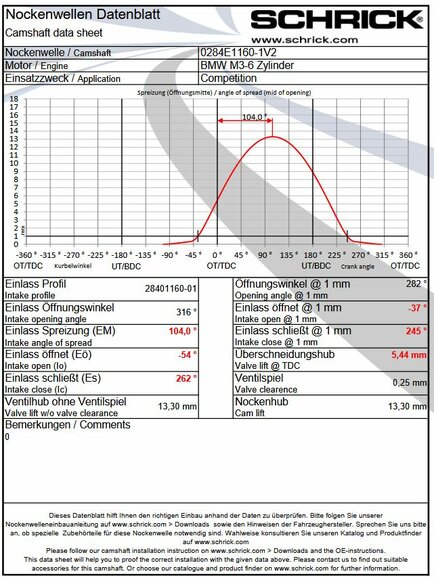

Technical data:
- Intake Camshaft BMW S50 S52 316°
- Cam Lift 13,3mm
- Valve lift intake 13,3mm
- Valve Lift at TDC 5,5mm
- Peak timing intake 104°
- Valve Clearance 0,25mm
- Exhaust Camshaft BMW S50 S52 308°
- Cam Lift 13,0mm
- Valve lift intake 13,0mm
- Valve Lift at TDC 4,5mm
- Peak timing intake 104°
- Valve Clearance 0,25mm
Vanos system must be removed!
Base circle diam. 32mm
Camshafts must be used with:
- valve springs ( 022702113 )
- valve spring retainers ( 028413013, 028413012 )
- lifters ( 022713805-2 )
- valve cotters ( 0894138L6 )
- intake valve ( 028413014 ) exhaust valve ( 028413015 )
Scope of delivery:
- 1 x Schrick Intake Nockenwelle BMW S50 S52 316°
- 1 x Schrick Exhaust Camshaft BMW S50 S52 308°
BMW S50, S52 6 cyl. 4 valve (M 3 E36)
Schrick item number: 0284E1160-1V2 / 0284A1080-1V2
Technical data:
- Intake Camshaft BMW S50 S52 316°
- Cam Lift 13,3mm
- Valve lift intake 13,3mm
- Valve Lift at TDC 5,5mm
- Peak timing intake 104°
- Valve Clearance 0,25mm
- Exhaust Camshaft BMW S50 S52 308°
- Cam Lift 13,0mm
- Valve lift intake 13,0mm
- Valve Lift at TDC 4,5mm
- Peak timing intake 104°
- Valve Clearance 0,25mm
Vanos system must be removed!
Base circle diam. 32mm
Camshafts must be used with:
- valve springs ( 022702113 )
- valve spring retainers ( 028413013, 028413012 )
- lifters ( 022713805-2 )
- valve cotters ( 0894138L6 )
- intake valve ( 028413014 ) exhaust valve ( 028413015 )
Scope of delivery:
- 1 x Schrick Intake Nockenwelle BMW S50 S52 316°
- 1 x Schrick Exhaust Camshaft BMW S50 S52 308°
